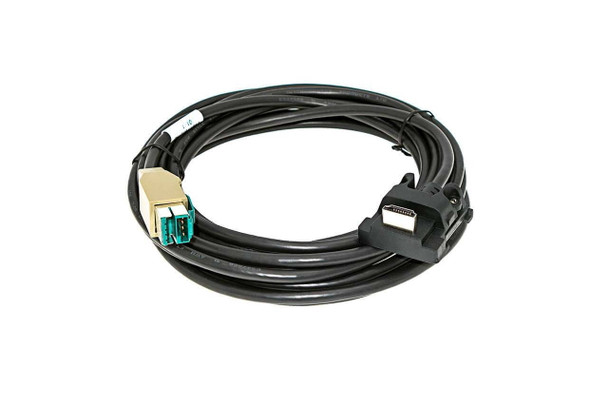

Ingenico iPP320 / iPP350 / iSC250 / iSC480 Dual USB Cable 5m (16.4ft) | Data + Power Split | 296116381AC

Ingenico iPP320 / iPP350 / iSC250 / iSC480 Dual USB Cable 5m | Split Data and Power

OEM Ingenico dual USB cable for iPP320, iPP350, iSC250, and iSC480 payment terminals. This 5-meter (16.4 foot) cable splits into two USB-A plugs: one carries data to your POS system, the other delivers power from a USB port or USB power adapter. No separate Ingenico power supply needed. Part number 296116381AC.

The extra length makes this cable ideal for installations where the POS system is mounted under a counter, in a back office, or otherwise far from the terminal location. The dual USB design lets you draw power from any available USB port or a standard USB wall adapter without needing a dedicated power supply.

▶ About the Ingenico iPP and iSC Terminals

The Ingenico iPP320 and iPP350 are compact PIN pad terminals used as customer-facing payment devices connected to a POS system. The iSC250 and iSC480 are signature capture terminals with larger touchscreen displays. All four models are widely deployed in retail, grocery, and hospitality environments.

These terminals require both a data connection and a power source. Different cable options exist depending on installation distance and power delivery method. This dual USB cable handles both over a 5-meter run using two standard USB connections.

▶ What Does "Dual Gang" Mean

Dual gang means the cable has two USB-A plugs on the host end instead of one. One plug carries data (connects to a USB port on your POS system or computer). The other plug carries power (connects to any USB port or USB wall charger that outputs enough amperage).

This design eliminates the need for a separate Ingenico power supply. Instead of running a USB cable plus a power adapter to the terminal, you run one cable with two plugs. Cleaner installation with less cable clutter.

The dual gang approach works with standard 5V USB ports. Unlike the 12V USB cable (296178419AB) which requires a special 12V USB port, this cable works with any standard USB infrastructure.

▶ When to Use This Cable vs Other iPP/iSC Cables

This cable (296116381AC) - Dual Gang USB, 5m: Use when you need extra length (up to 16.4 feet between POS system and terminal) and want to power the terminal through standard USB ports without a separate Ingenico power supply. Two USB plugs required on the host side.

iSC 12V USB Cable (296178419AB) - 2m, no PSU needed: Use when your POS system has a dedicated 12V USB output port. Single cable, single plug. Shorter (2 meters) but cleaner single-port installation. Note: fits iSC250/iSC350/iSC480 but NOT iPP320/iPP350.

Basic USB Cable: Data only. Requires a separate Ingenico power supply plugged into the terminal.

If you need length over 6 feet AND want to avoid a separate power supply for iPP or iSC terminals, this dual gang cable is your best option.

▶ Installation

1. Power off the terminal.

2. Locate the cable port on the bottom or back of the iPP or iSC terminal.

3. Connect the terminal end of the cable into the terminal port until it clicks.

4. Route the cable to your POS system or host computer location (up to 5 meters).

5. Connect the DATA USB-A plug into a USB port on your POS system or computer.

6. Connect the POWER USB-A plug into a second USB port on your POS system, a USB hub, or a USB wall charger (minimum 2A output recommended).

7. The terminal should power on once both plugs are connected.

8. Run a test transaction through your POS software to confirm data connection.

If the terminal does not power on, verify the power USB plug is connected to a port that provides sufficient amperage.

▶ What Is Included

✅ 1x OEM Ingenico Dual Gang USB cable (296116381AC)

✅ 5 meters (16.4 feet) length

✅ Two USB-A plugs on host end (data + power)

✅ New, unused condition

❌ Terminal NOT included

❌ Separate power supply NOT included (not needed with this cable)

❌ USB wall charger NOT included (any standard USB charger works for the power plug)

▶ Compatibility

✅ Ingenico iPP320

✅ Ingenico iPP350

✅ Ingenico iSC250

✅ Ingenico iSC480

⚠️ Both USB-A plugs must be connected for the terminal to receive power. One plug alone will not power the terminal.

⚠️ The power USB plug requires a USB port with at least 2A output for reliable operation.

❌ Does NOT fit Ingenico Lane 3000/5000/7000/8000. Use part 296116381AE instead.

❌ Does NOT fit Ingenico Lane 3600. Use part 296116381AE instead.

▶ Troubleshooting

Terminal does not power on: Both USB plugs must be connected. Verify the POWER USB plug is in a port with sufficient amperage (2A minimum). Try a different USB port or a dedicated USB wall charger.

Terminal powers on but no data connection: Verify the DATA USB plug is connected to your POS system (not just a charger). Check POS software configuration. Restart both POS and terminal.

Intermittent power loss or reboots: The power source is likely underpowered. Switch the power USB plug to a higher-amperage USB port or a 2A+ USB wall charger.

Cable does not fit terminal: Confirm you have an iPP320, iPP350, iSC250, or iSC480. This cable does NOT fit Lane series terminals. For Lane 3000-8000 or Lane 3600, use part number 296116381AE.

▶ Other Supplies for Ingenico iPP/iSC Terminals

12V USB cable (2m, iSC only). Basic USB cables. Power supplies. Ethernet cables. Stylus pens. Privacy shields. Mounting stands. Check our Ingenico accessories collection for compatible parts.
