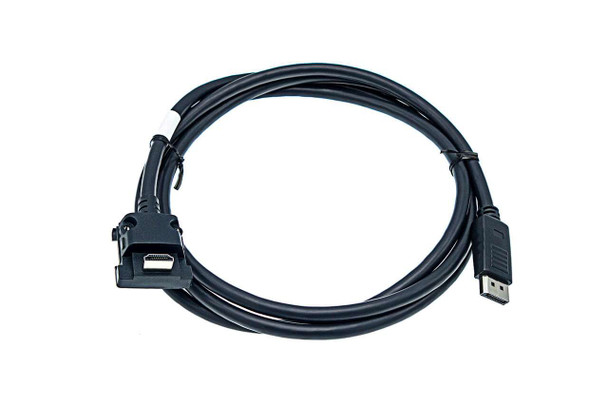

Ingenico Lane 5000/7000/8000 Umbilical Cable — Terminal to ComBox/Vbox — 6ft

Ingenico Lane 5000/7000/8000 Umbilical Cable — Terminal to ComBox/Vbox

OEM umbilical cable for connecting Ingenico Lane 5000, 7000, or 8000 payment terminals to a ComBox or Vbox communication hub. This single cable routes power, USB, Ethernet, RS232, and other signals between the terminal and hub, replacing multiple cable runs with one clean connection. Features proprietary Ingenico connectors on both ends.

Specifications:

Compatible Terminals:

• ✅ Ingenico Lane 5000
• ✅ Ingenico Lane 7000
• ✅ Ingenico Lane 8000
• ✅ Compatible with Lane 3000 (uses Part# 296141785AC)
• ✅ Compatible with Lane 3600 (uses different umbilical — Lane 3600 Umbilical Cable here)

Compatible Communication Hubs:

• ✅ Ingenico ComBox ( ComBox Kit available here)
• ✅ Ingenico Vbox

What Is a ComBox / Vbox?

The ComBox and Vbox are communication hubs made by Ingenico that sit between your Lane terminal and your network infrastructure. Instead of connecting multiple cables directly to the terminal, everything connects to the hub:

The umbilical cable carries ALL of these signals through a single cable to the terminal. One cable to the counter instead of many.

Connection Diagram:

  [Lane 5000 / 7000 / 8000 Terminal]
              |
              |  ← UMBILICAL CABLE (this product)
              |     Part# 296141785AD
              |
  [ComBox or Vbox Communication Hub]
     |         |         |         |        |
  [Power]  [Ethernet]  [USB]   [RS232]  [Other]
  Supply   to Network  to PC   to POS    Ports

One cable to the terminal. Everything else connects to the ComBox/Vbox. This keeps your counter clean and makes terminal swaps easy, disconnect one cable and plug in a replacement terminal.

⚠️ Important: You Need a ComBox or Vbox to Use This Cable

This cable connects your Lane terminal TO a ComBox or Vbox hub. Without one of those hubs, this cable has no purpose.

• Have a ComBox/Vbox? → This cable is what you need
• Don't have a ComBox/Vbox? → You need a direct connection cable instead:
  • Powered USB Cable — for direct PC connection
  • Ethernet Cable — for direct network connection
• Need the ComBox too? → The ComBox Kit includes the umbilical cable — better value if you need both

What's Included:

• 1x Ingenico Umbilical Cable — 2 meter (Part# 296141785AD)
• ComBox/Vbox NOT included
• Power supply NOT included — order power supply separately

When You Need This Cable:

• Original umbilical cable is damaged, frayed, or has bent pins
• Terminal randomly disconnects, loses power, or reboots (common sign of worn umbilical)
• Intermittent "Communication Error" or "No Connection" messages
• Terminal works only when cable is held at a certain angle
• Setting up a new Lane 5000/7000/8000 with existing ComBox/Vbox
• Purchased used/refurbished terminal without the umbilical
• Need a spare for quick swap during business hours

Lane 3000 vs Lane 3600 vs Lane 5000/7000/8000 Umbilical Cables:

⚠️ Note: The Lane 3000 part number (296141785AC) is very similar to this cable (296141785AD) — only the last two characters differ (AC vs AD). They are interchangeable.

Installation:

1. Power off the Lane terminal and disconnect the ComBox/Vbox power supply
2. Disconnect old umbilical cable from both terminal and hub
3. Inspect new cable connectors for any shipping damage
4. Connect one end to the ComBox/Vbox umbilical port
5. Connect other end to the bottom of the Lane terminal — push firmly until it seats securely
6. Reconnect power supply to the ComBox/Vbox
7. Terminal should power on automatically through the umbilical
8. Verify network connectivity and run a test transaction

Troubleshooting After Installation:

• Terminal won't power on: Verify the power supply is connected to the ComBox/Vbox — power routes through the hub, not directly to the terminal. Need a power supply?
• Intermittent connection: Ensure both connectors are fully seated — push firmly on both ends
• No network: Check that your Ethernet cable is connected to the ComBox/Vbox, not to the terminal directly
• "Communication Error" persists: Try swapping the Ethernet or USB cable on the ComBox/Vbox — the issue may not be the umbilical
