VeriFone P400 / P200 / VX820 / VX805 Serial Cable 6 ft or 10 ft | OEM CBL282-031-02-A

VeriFone RS232 Serial Cable for P400, P200, VX820 and VX805 - OEM Part CBL282-031-02-A

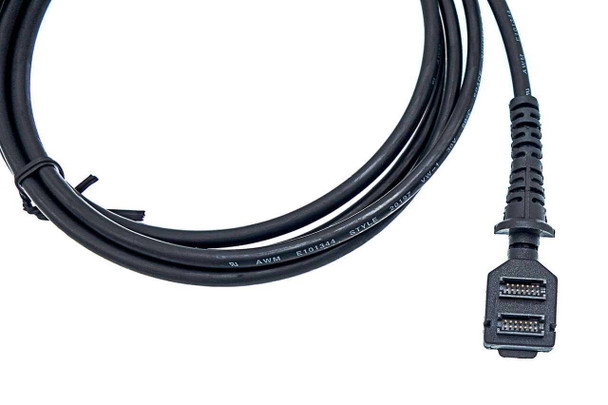

Plenty of registers and PCs still talk to the PIN pad over a 9-pin serial port, and when that lane's cable goes, the checkout stops taking cards. This is the genuine VeriFone RS232 cable that links a P400, P200, VX820 or VX805 PIN pad to a DB9 serial host. The pad end is the 28-pin connector that locks under the compartment cover. The host end is a DB9 housing with a DC jack for the VeriFone power pack. Choose 6 ft (1.8m) or 10 ft (3m) above.

No adapter chain. No guessing at pinouts. Just the serial cable VeriFone specifies for these pads, in the two lengths VeriFone makes.

Key Features

• ✅ Genuine VeriFone OEM cable, listed by VeriFone as the RS-232 DB9 cable for the P400 and P200
• ✅ Fits the VeriFone P400, P400 Plus, P200, P200 Plus, VX820 and VX805 PIN pads
• ✅ DB9 female host end plugs straight into a standard 9-pin serial port on a PC, ECR, or POS controller
• ✅ Built-in DC jack on the host end takes the VeriFone 12V power pack, so the pad runs at full power for contactless and video
• ✅ Two lengths, 6 ft (1.8m) and 10 ft (3m), so you can reach a host under the counter or one lane over
• ✅ Molded strain relief at both ends protects the connectors where cables fail first

Specifications

▶ What This Cable Does, When You Need It, and Which Length

Serial is the connection most PC-based and ECR-based lanes still use for a PIN pad. VeriFone describes this part as the RS-232 DB9 cable, powered from a +12V DC adaptor, and calls it the generic cable for all RS232-based hosts. The pad talks to the host over the DB9 pins, and the DC jack on the same housing feeds power into the pad because a serial port cannot supply any.

• Your P400, P200, VX820 or VX805 arrived with no cable. VeriFone ships PIN pads bare, and the cable is always a separate line item.

• Your host has a 9-pin serial port and no free USB port, or your POS software is configured for a COM port.

• The old cable is crushed, the DB9 shell is cracked, or the pad reboots because the DC jack has gone loose.

• You are adding lanes and want every pad wired the same way.

• 6 ft (1.8m), part CBL282-031-02-A: the pad sits on the counter and the host is directly beneath or beside it. This is the length VeriFone catalogs as standard.

• 10 ft (3m), part CBL282-031-03-A: the host is one position over, in a cabinet, or the cable has to route through a grommet and along a cable tray.

Measure the actual path the cable will take, not the straight-line distance. Cables that are pulled tight at the connector fail early.

▶ Compatible Terminals

• VeriFone P400 and P400 Plus - the RS-232 DB9 cable in VeriFone's P400 accessories list

• VeriFone P200 and P200 Plus - the RS-232 connection cable named in the VeriFone P200 installation guide

• VeriFone VX820 and VX805 - VeriFone catalogs this part as the VX820 RS232 cable, and the 28-pin end is shared across the range

Not for the M400, or for hosts with only an RJ45 serial port (that is the CBL282-036 coiled cable, a different part). If your host port is a flat rectangular USB port, you need the USB version of this cable instead.

▶ How to Install

1. Power down the host. Do not connect the power pack yet.

2. Open the cable compartment on the back of the pad by loosening the captive screw and sliding the cover off.

3. Seat the 28-pin connector fully, slide the cover back, and tighten the screw so the cover clamps the cable.

4. Plug the DB9 end into the host serial port and tighten the thumbscrews.

5. Connect the VeriFone power pack to the DC jack on the DB9 housing last, then plug the pack into the wall. The pad powers on.

▶ Troubleshooting

• Pad does not power on: the power pack is not connected or not seated in the DC jack. Serial ports supply no power, so the pack is required.

• Pad powers on but the POS does not see it: check the COM port number and baud rate in the POS software, then reseat the DB9 and the 28-pin end.

• Pad reboots during transactions: the DC plug is loose in the jack or the power pack is the wrong rating. Use the VeriFone 12V pack.

• Contactless or video features are missing: the pad is under-powered. Confirm the power pack is connected rather than relying on the host.

▶ What's Included

• One VeriFone RS232 DB9 cable in the length selected

Not included: PIN pad, host computer or register, VeriFone 12V power pack (required, sold separately).

▶ Why Use the OEM Cable

The 28-pin connector and the power-through-DB9 design are VeriFone's own. A copy that gets a pin or the power routing wrong can leave the pad rebooting mid-sale or never enumerating on the COM port at all. This is the part VeriFone tested with these pads. It is the cheapest piece of the lane and the one that fails most often, which is why it pays to fit the right one.
