Description

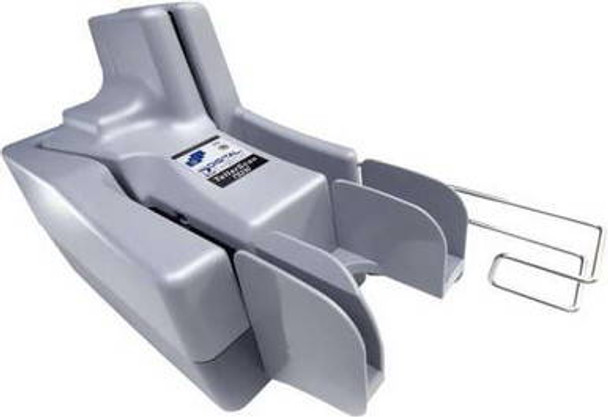

The TellerScan 230 (TS230) embodies the most advanced design for distributed check capture on the market today. The TS230 is now available in three models. Every model supports Digital Check Corp.'s unique continuous feed feature, which allows checks to be added while scanning - for higher throughput and more volume than traditional scanners. The TS230-65, scanning at up to 65 items per minute, is ideal for teller windows and corporate environments that need to process deposits throughout the day or in a narrow time frame.
Note: This unit comes with a power pack.
Product Features
- 1 to 50 items continuous feed (Depending upon document thickness and condition)
- Smoother and Quieter Operation
- Single slot exit pocket holds up to 50 items
- Paper Size:
- Document Height: 2.12" - 4.17" (54-106 mm.)
- Document Length: 3.91" - 8.97" (80-228 mm.)
- Document Weight: 16-120 lb. (60-500 grams / sq. meter) - Scanning Method: Double-camera CIS modules, Tri-color LED
- Transport Speed: 19.7" (50 cm) per second
- Performance:
Model 65 - Up to 65 x 6" (15 cm) items per minute
Model 100 - Up to 100 x 6" (15 cm) items per minute - Image Capture:
color - 24-bit (16m shades)
grayscale - 8-bit (256 shades)
grayscale - 4-bit (16 shades)
b/w - 1-bit - Image Resolution: 200 DPI max hardware
- Automatic image cropping
- MICR Recognition: MICR recognition for E13B or CMC7 standards
- PC Interfacing via USB 2.0 port (1.1 with performance limitations)
- Options: Ink-jet printer (Standard HP C6602A cartridge, high yield)
Diagnostic Features
- Diagnostics tools for full testing of scanner functionality
- Flash EEPROM allows for easy upgrade of functionality
- Easy access to the document path, including the optics
Software Tools
- 32 bit API Toolkit (Requires 32 bit application)
- Windows 2000 and Windows XP
Electrical and Environmental
- Power Consumption: 45 VA
- Input Voltage:
- 100 to 240 VAC (+/- 10%), 50/60 hz - Separate standard power supply - Temperature (operating): 60° - 90° F (15°- 32° C)
- Humidity (operating): 35-85%
- Unit Dimensions:
- Height: 6.6" (17cm)
- Depth: 5.1" (13cm)
- Length: 8.6" (21.7cm) (11" - 27.9cm incl. I/O trays)
- Weight: 4.4 lbs (2kg)
Product Life & Duty Cycle
- Designed for useful life of over 5,000,000 items
- Performance:
Model 65 - 2,000 to 3,000 items per day
Model 100 - 6,000 to 8,000 items per day
